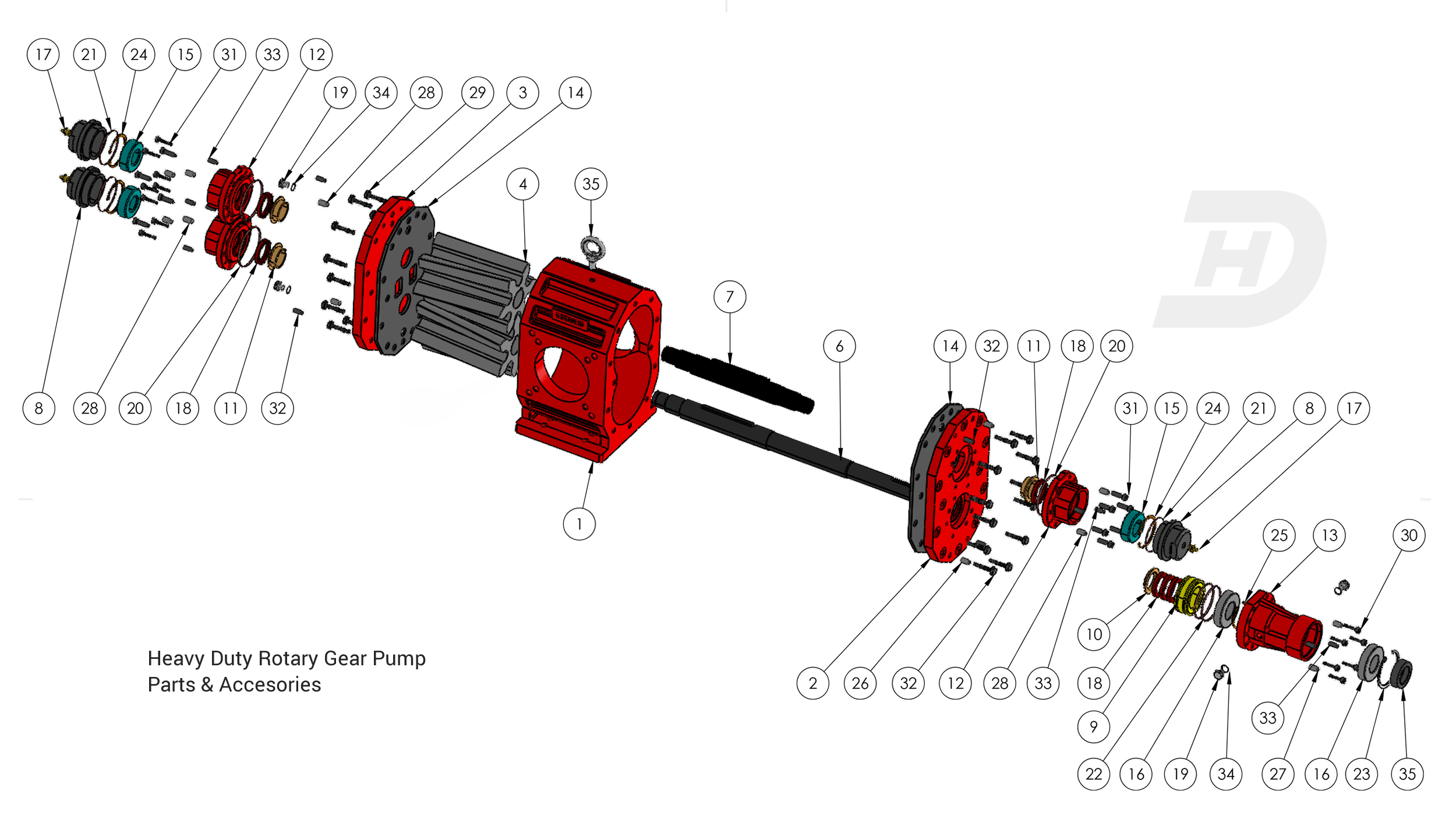

| MEHD Series Parts & Accessories List | |||
|---|---|---|---|
| No. | Part Number | Description of items | Qty. |
| 1 | DH1400 | 4″ Pump Casing | 1 |
| 1 | DH1.45 | 4.5″ pump casing | 1 |
| 1 | DH1.3 | 3″ pump casing | 1 |
| 1 | DH4.90 | 90 degree pump casing | 1 |
| 1 | DH1-500 | 5″ Pump Housing | 1 |
| 2 | Front Cover | 1 | |
| 3 | Back Cover | 1 | |
| 4 | DH4.3 | 3″ Gear Set | 1 |
| 4 | DH4.4 | 4″ gear set | 1 |
| 4 | DH4.45 | 4.5″ Gear Set 24.5 | 1 |
| 4 | DH4500 | 5″ Gear Set | 1 |
| 6 | DH6.3 | 3″ long shaft 18.5 | 1 |
| 6 | DH6.4 | 4″ long shaft | 1 |
| 6 | DH6.45 | 4.5″ Long Shaft 23.5 | 1 |
| 6 | DH6.5 | 5″ Long Shaft 24.5 | 1 |
| 6 | DH6.90 | Long Shaft 90 Deg Pump 23. | 1 |
| 7 | DH7.3 | 3″ short shaft 10 | 1 |
| 7 | DH7.4 | 4″ short shaft | 1 |
| 7 | DH7.45 | 4.5″ Short Shaft 12-7/8 | 1 |
| 7 | DH7.5 | 5″ Short Shaft 13-7/8 | 1 |
| 7 | DH7.90 | Short Shaft 90 Deg Pump 12 | 1 |
| 8 | DH8 | Grease Cap (goes with DH24) | 3 |
| 9 | DH9 | Oil seal housing (puck) | 1 |
| 10 | DH10 | Short Brass Bushing | 1 |
| 11 | DH11 | Long Brass Bushing | 3 |
| 12 | DH12 | Small Seal Housing Cast | 3 |
| 12 | DH12ST | Small seal housing steel | 3 |
| 13 | DH13.1 | Nose Cone (Requires 3x DH 18.1) | 1 |
| 13 | DH13.2 | Nose Cone (Requires 6x DH 18.1) | 1 |
| 13 | DH13.3 | Nose Cone Flange (requires 6DH 18.1) | 1 |
| 14 | Wear Plate-6MM | 2 | |
| 15 | DH15 | Bearing-NJ-2206-NSK | 3 |
| 16 | DH16.1 | Chrome shaft bearing 207 | 2 |
| 16 | DH16.2 | Black shaft bearing 207-22 | 2 |
| 17 | DH17 | Grease nipple 1/4″ BSPT | 2 |
| 18 | DH18.1 | Viton oil seal-35x50x8 | 6 |
| 18 | DH18.2 | Nitrile Seal | 6 |
| 19 | DH19 | Drain plug 1/4″ BSPT | 4 |
| 20 | DH20 | O’Ring For Small Housing | 3 |
| 21 | DH21 | O’Ring For Grease Cap | 3 |
| 22 | DH22 | O’Ring For Oil Seal Housing | 2 |
| 23 | DH23 | Nosecone Snap Ring | 1 |
| 24 | DH24 | Small Housing Snap Ring | 3 |
| 25 | DH25 | Shaft Snap Ring | 1 |
| 26 | DH26 | Dowel Pin For FC & BC-10×35 | 4 |
| 27 | DH27 | Dowel pin 8×30 | 2 |
| 28 | DH28 | Dowel pin 8×25 | 6 |
| 29 | HT Hex Bolt-10×40 | 24 | |
| 30 | HT Allen cap-8×30 | 6 | |
| 31 | HR Allen cap-8×25 | 18 | |
| 32 | M10x40x1.50P | M10x40x1.50P | 4 |
| 33 | M8x70x1.25p | bolt/washer/nut | 8 |
| 34 | O’ Ring for Oil Drain Plug | 4 | |
| 35 | Supplied with DH 16.1 or DH 16.2 |
Collar for Main Shaft | 1 |
| 36 | Name Plate | 2 | |
| 37 | Paint | 1 | |
| 38 | Eye Bolt | 1 | |
